Barksdale Pressure Switch, Indicating, 15-200 PSI Range, Viton, 10 Amp SPDT Contacts, 18" Leads, C9612-0-V
Special Price
$510.13
was
$583.00
SKU
Barksdale-Piston-Pressure-Switch-C9612-0-V
Barksdale Indicating Pressure Switch C9612-0-V, 15-200 PSI
18" Leads, SPDT 10 Amp Relay, Viton Seal
18" Leads, SPDT 10 Amp Relay, Viton Seal

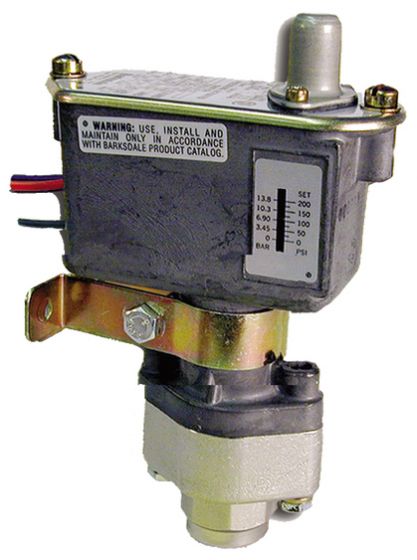

BARKSDALE Sealed Piston Pressure Switch C9612-0-V is a self-contained pressure sensor with a presssure range of 15-200 PSI and INDICATION. Adjustable range decreasing is 15-170 and adjustable range rising is 18-200. Deadband is 3-30 PSI. Pressure connection is 1/4-18 inch NPT female with Viton O-Ring. Proof Pressure is 3000 PSI.
SPDT Contact ratings are 10 amps @ 125, 250, 480 VAC; 2.0 amps @ 600 VAC and .03 amps at 250 VDC.
Weather Tight Aluminum Housing with NEMA 3 rating and 18 inch leads
UL Listed, File 022355-0-000.
Barksdale Indicating Pressure Switch model C9612-0-V.
| Brand | Barksdale |
|---|---|
| MFR Part Number | C9612-0-V |
| Type | Barksdale Series C9612 |
| Application | Industrial Automation |
| Exact Amperage (Amps) | 10 |
| Color | Aluminum |
| Material | Aluminum |
| Condition | New |
| Explosion Proof | No |
| Install Options | Indoor/Outdoor |
| Model | Barksdale Pressure Switch C9612-0-V |
| NPT Size (Inches) | 1/4-18 |
| Phase | 1 |
| Product Dimensions (Inches) | 6.91 x 4.562 x 3.125 |
| Voltage (Volts) | N/A |
| PSI Range | 15-200 |
| Water Resistant/Hosedown | Yes |
| Warranty | 1 year |
