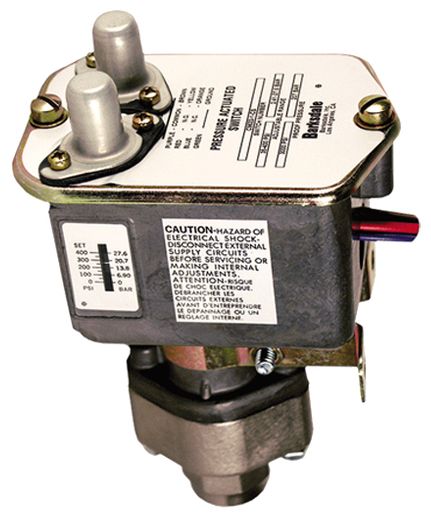

Barksdale Pressure Switch, Indicating, 35-400 PSI Range, Dual Set Point, Ethylene Propylene, 10 Amp SPDT Contacts, terminals, TC9622-1-E
Special Price
$815.50
was
$932.00
SKU
Barksdale-Piston-Pressure-Switch-TC9622-1-E
Barksdale Indicating Dual Set Point Pressure Switch TC9622-1-E, 35-400 PSI
J-Box w/Terminals, SPDT 10 Amp Relay, Ethylene Propylene Seal
J-Box w/Terminals, SPDT 10 Amp Relay, Ethylene Propylene Seal
BARKSDALE Sealed Piston Pressure Switch TC9622-1-E is a self-contained pressure sensor with a presssure range of 35-400 PSI and Dual Set Point INDICATION. Adjustable range decreasing is 35-340 and adjustable range rising is 40-400. Deadband is 5-60 PSI. Pressure connection is 1/4-18 inch NPT female with Ethylene Propylene O-Ring. Proof Pressure is 3000 PSI.
SPDT Contact ratings are 10 amps @ 125, 250, 480 VAC; 2.0 amps @ 600 VAC and .03 amps at 250 VDC.
Weather Tight Aluminum Housing with NEMA 3 rating and a Junction Box with terminals
UL Listed, File 022355-0-000.
Barksdale Indicating Pressure Switch model TC9622-1-E.
| Brand | Barksdale |
|---|---|
| MFR Part Number | TC9622-1-E |
| Type | Barksdale Series C9622 |
| Application | Industrial Automation |
| Exact Amperage (Amps) | 10 |
| Color | Aluminum |
| Material | Aluminum |
| Condition | New |
| Explosion Proof | No |
| Install Options | Indoor/Outdoor |
| Model | Barksdale Pressure Switch TC9622-1-E |
| NPT Size (Inches) | 1/4-18 |
| Phase | 1 |
| Product Dimensions (Inches) | 6.91 x 4.562 x 3.125 |
| Voltage (Volts) | N/A |
| PSI Range | 35-400 |
| Water Resistant/Hosedown | Yes |
| Warranty | 1 year |
