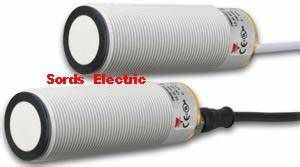

Carlo Gavazzi Ultrasonic Sensor, M18 Cylinder, 10-30 VDC, 100-900 mm Sensing, NPN NO/NC Output, UA18CAD09NPTI

Carlo Gavazzi Ultrasonic M18 UA18 sensor is a self-contained multi function diffuse ultrasonic sensor with a sensing range of 100 to 900mm. 2 switching NPN outputs - easIly set up for two different output modes and adjusted by teach-in - makes it ideal for level control tasks in a wide variety of vessels. A sturdy one-piece polyester housing provides the perfect packaging for the sophisticated microprocessor controlled and digitally filtered sensor electronics. Excellent EMC performance and precision are typical features of this sensor on true distance measurement.

PBT-Polyester housing

Sensing distance: 50 - 400 mm

Outputs: 2 multi-function switching DIGITAL outputs - NPN

Setup: Normal switching or adjustable hysteresis

Power supply: 15 to 30 VDC

8° beam angle

Protection: Short-circuit, reverse polarity, overvoltage

Protection degree IP 67

2 Meter Cable, 4 wires

CE approved and cULus (UL508)

Carlo Gavazzi model UA18CAD09NPTI
