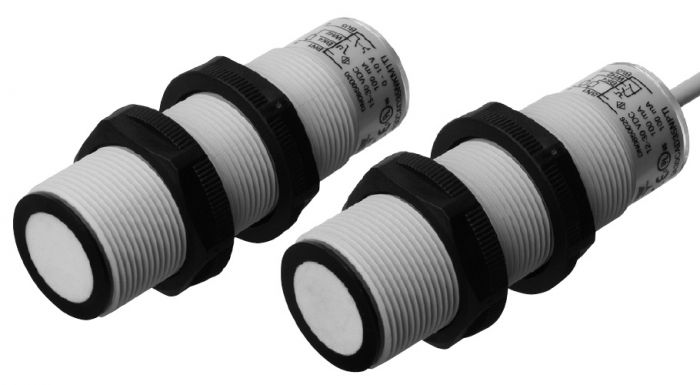

Carlo Gavazzi Ultrasonic Sensor, M30 Cylinder, 12-30 VDC, 250-3500 mm Sensing, NPN NO/NC Output, UA30CAD35NKTI

Carlo Gavazzi Ultrasonic UA30CAD35NKT1 M30 sensor is a self-contained multi function diffuse ultrasonic sensor with a sensing range of 250 to 3500 mm. 2 switching outputs - easily set up for two different output modes and adjusted by teach-in - makes it ideal for level control tasks in a wide variety of vessels. A sturdy one-piece polyester housing provides the perfect packaging for the sophisticated microprocessor controlled and digitally filtered sensor electronics. Excellent EMC performance and precision are typical features of this sensor on true distance measurement.

Cylindrical M30 PBT housing

Sensing distance: 250-3500 mm

The Analog output is 0-10V and the digital output is NPN

Setup: Normal switching or adjustable hysteresis

Power supply: 12 to 30 VDC

6° beam angle

Protection: Short-circuit, reverse polarity, overvoltage

Protection degree IP 67, Nema 4X

2 Meter Cable, 4 Wire

CE approved and cULus (UL508)

Carlo Gavazzi model UA30CAD35NKTI.
