Fenwal Detect-A-Fire Switch, Fluorocarbon Coating, Vertical Mount w/Coupling Head, NO, 275°F, 5 Amps, 12-F28021-13000-0T

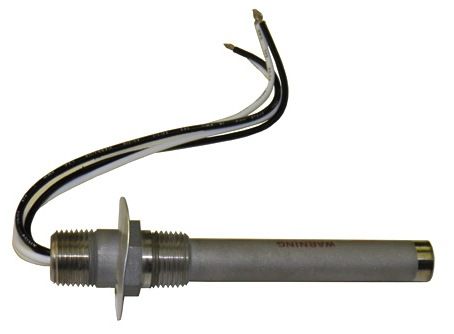

The Fenwal Model 12-F28021-13000-0T Fluorocarbon Coated Detect-A-Fire has a set point of 275 fahrenheit and the contacts close on temperature rise. The 28021-275 series Fenwal Detect-A-Fire model is a vertical mount detection and release device for fire protection. The contacts are rated for 5 amps (125 VAC) and .5 Amps (125 VDC). The Code 12 Fenwal DAF is designed with rate compensation which accurately senses air temperature and activates at precisely the determined temperature chosen. The 28021 are mounted via a 1/2 14NPT thread into a junction box on the ceiling. The unit has 6 inch leads. The Fenwal 27121 series Detect-A-Fires are CE, UL, ULC, and FM certified. Explosion Proof ratings are Class I, Groups A, B, C and D; Class II, Groups E, F and G. Fenwal part number 12-F28021-13000-0T.

PLEASE NOTE: The Fluorocarbon Coated Detect-A-Fire switches require a 25 unit minimum order OR a $215.00 set up charge (per SKU, not per unit) up to 24 units. Manufacture time is 4 weeks minimum.
