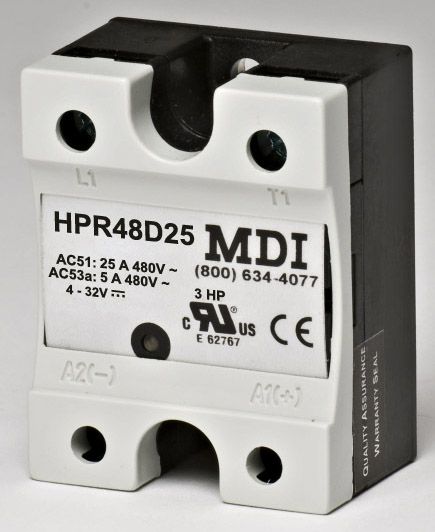

MDI Solid State Relay, 4-32 DC volt Control, 25 Amps, Single Pole, HPR48D25

MDI Solid State Relay Contactor HPR48D25, single pole, 25 amps, 0 - 100 volts output, 4-32 vdc Control Voltage. MDI Solid State Relays can switch up to 100 volts AC based on amperage load and ambient temperatures. MDI solid relays can switch millions of cycles, out performing mechanical relays. The industrial, 1-phase relay with anti-parallel thyristor output is the most widely used industrial SSR due to its multiple application possibilities. The MDI SSR relay can be used for resistive, inductive and capacitive loads. The zero-switching relay switches ON when the sinusoidal curve crosses zero and switches OFF when the current crosses zero. The instant-on relay with DC control input can be used for phase control. The built-in varistor secures transient protection for the heavy industrial applications, and the LED indicates the status of the control input. The clip-on cover is securing touch protection to IP 20. Protected output terminals can handle cables up to 16mm_. 1 Year Warranty. CE, UL approved and CSA listed.
