Robertshaw Vibration Monitor 566-A1, 120 Volts AC Power Supply, NEMA 7 Housing

The Robertshaw Schneider Electric Model 566-A1 Vibration Monitor with INTERNAL sensor is a solid state instrument that encompasses a variety of functions all in one unit. Vibration can be monitored in either velocity or acceleration. The standard ranges are 0 to 1.5 inches/second or 0 to 3 inches/second when sensing velocity and 0 to 5 G's or 0 to 10 G's when sensing acceleration. A DC 4 - 20 mA output is provided to drive a 750 ohm maximum load.

The Robertshaw Model 566 includes two solid state Triacs (2 amp @ 120/240 VAC) which can be operated in a Normally Open or Normally Closed configuration. Alarms are capable of being latched or non-latched (ON-OFF). Alarm # 1 has a monitor time delay adjustable from 0.5 to 15 seconds. LED set point indicators are provided to indicate the alarm condition.

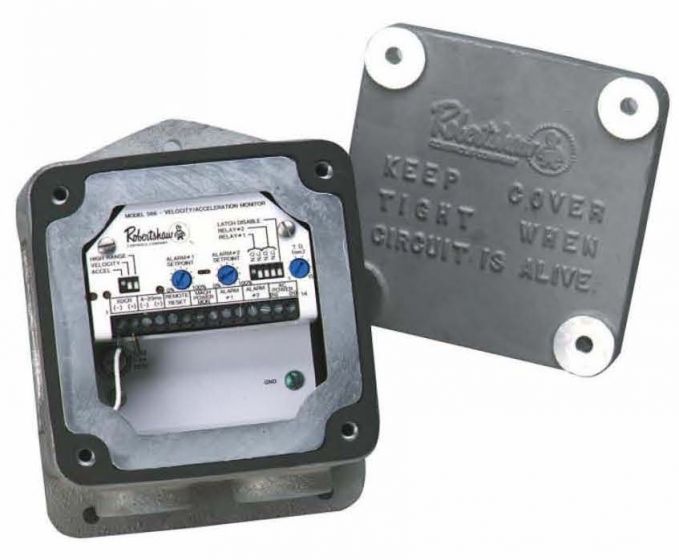

The Model 566 vibration instrument and optional remote mounted sensor are housed in a weather proof and explosion proof enclosure. Note that only an ungrounded twisted pair wire is required to connect the remote sensor unit to the Schneider Electric Series 566 vibration monitor. The Robertshaw 566A1 monitor is CSA and FM approved Explosion-Proof (see date sheet for Class, Division and Groups) rated with a 120 VAC power Supply.

Robertshaw Schneider Electric part number is 566-A1.
