Robertshaw Schneider Replacment Part 904GC337 566 Sensor NEMA 7 Housing

Special Price $1,285.82 was $1,353.49

SKU

Robertshaw-Vibration-Monitor-566-Sensor

Robertshaw Electronic Acceleration Sensor with 4-20mA Output

Twisted Pair wire required and CSA/FM rated Explosion-Proof

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

The Robertshaw Schneider Electric Model 904GC337 sensor for the 566 series vibration monitor/accelerometer. The standard ranges are 0 to 1.5 inches/second or 0 to 3 inches/second when sensing velocity and 0 to 5 G's or 0 to 10 G's when sensing acceleration. The sensor puts out a DC 4 - 20 mA signal to the monitor.

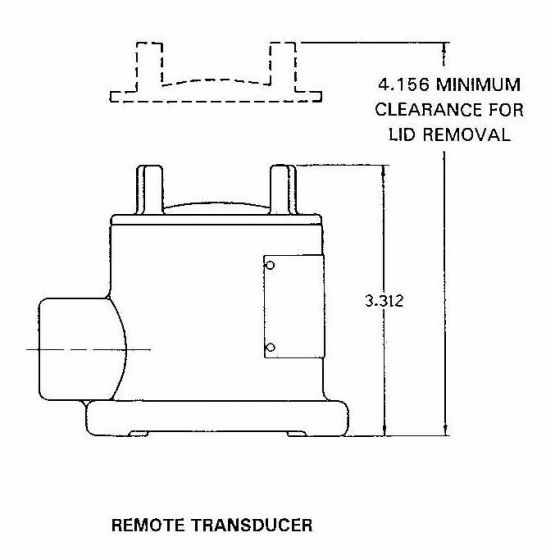

The Model 566 vibration instrument and optional remote mounted sensor are housed in a weather proof and explosion proof enclosure. Note that only an ungrounded twisted pair wire is required to connect the remote sensor unit to the Schneider Electric Series 566 vibration monitor. The Robertshaw 566 instrument monitor and sensor are CSA and FM approved Explosion-Proof (see date sheet for Class, Division and Groups) rated with a 120 or 240 VAC power Supply.

Robertshaw Schneider Electric spare part number is 904GC337.

Specifications

Specifications
Brand	Robertshaw
MFR Part Number	904GC337
Old MFR Part Number	566-Sensor
Type	Vibration Switch
Application	Industrial
Color	Aluminum
Material	Aluminum
Condition	New
Explosion Proof	Yes
Install Options	Indoor/Outdoor
Model	Robertshaw Explosion-Proof 904GC337 Vibration Acceration Sensor
Phase	1
Product Dimensions (Inches)	5 x 5 x 5
Voltage (Volts)	120 VAC
Water Resistant/Hosedown	Yes
Warranty	1-year limited warranty
