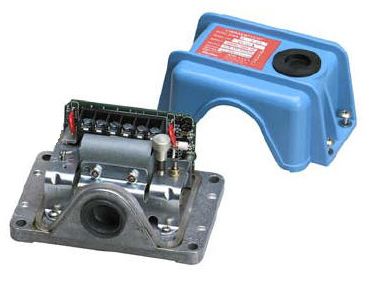

Robertshaw Vibration Switch 376A-A1-C0, 0-4.5 G, NEMA 4 Housing, Start Delay 15 seconds

The Robertshaw 376A-A1-C0 Vibraswitch malfunction detectors provide maximum protection for large motors, pumps, compressors and other rotating or reciprocating equipment by responding to mechanical malfunctions the instant they occur. Robertshaw "Start Delay Only" models hold the Vibraswitch armature in its "reset" position for a preset starting time after application of supply voltage to the instrument. This prevents the Vibraswitch from tripping out during machine startup. Fixed timing periods of 15, 30, 60 or 90 seconds are available. After the time period, the Vibraswitch functions as normal with shutdown or alarm functions provided by utilizing the SPDT switch contacts in the unit.

The 376AA1C0 vibration switch has a range of 0-4.5 G's. Contacts are SPDT 5A for the Start Delay models and SPST 2 A Triac Solid State Contacts (NO or NC operation) for the Monitor or Start & Monitor Delay Models. The Robertshaw 376AA1C0 is NEMA 4, NEMA 12 and CSA enclosure 4 and 12.

Robertshaw 376AA1C0.
