TECO Micro VFD, 115 Single Phase Input, 0-240 Three Phase Output, 1.8 Amps, .25 HP, L510-1P2-H1-U
Special Price
$456.00
was
$475.00
SKU
TECO-Micro-Drive-L510-1P2-H1-U
TECO Westinghouse L510-1P2-H1-U, 115/60 VAC Input
0-240 VAC, 3 Phase Output and 1/4 HP
0-240 VAC, 3 Phase Output and 1/4 HP

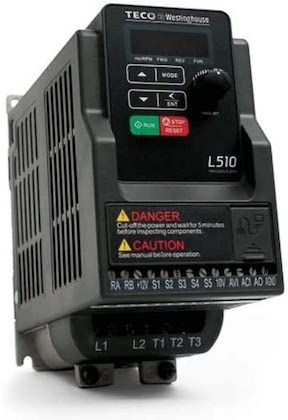

TECO Westinghouse Micro Variable Frequency 1/4 HP Sensorless Vector AC Drive L510-1P2-H1-U is a 115 VAC Single Phase input and a 0-240 VAC three phase output VFD. The TECO L510 Micro VFD is .25 HP, 1.8 Constant torque amps, .68 KVA and .2 KW. The Unit's speed range is .01-650.00 Hz. The L510 drive can be set with the onboard keypad with up and down arrows or with the onboard potentiometer.
The TECO L510 Micro Drive has external input termninas for AVI (0/2-10V), and ACI (0/4-20mA) input. The main features are overload detection, 8 preset speeds, Auto-run, Acc/Dec Switch, Main/ Alt Run Command Select, Main/ Alt Frequency Command Select, PID Control, Torque Boost, V/F Start Frequency and Fault Reset.
Chassis Style Enclosure (IP20) with DIN Rail Option
UL Approved, cUL Listed and CE Marked.
TECO Westinghouse VFD model is L510-1P2-H1-U.
| Brand | TECO |
|---|---|
| MFR Part Number | L510-1P2-H1-U |
| Old MFR Part Number | L5101P2H1U |
| MPN Alternate | L510-1P2-H1-N |
| Type | VFD |
| Cross Reference Part Number | JNEV-1P2-H1 |
| Application | Industrial Automation |
| Exact Amperage (Amps) | 1.8 |
| Color | Black |
| Material | Plastic/Stainless Steel |
| Condition | New |
| Explosion Proof | Yes |
| Install Options | Indoor/Outdoor |
| Model | TECO Vectorless Variable Frenquency Drive L510-1P2-H1-U |
| Amperage (Amps) | 1.8 |
| Phase | 1 |
| Product Dimensions (Inches) | 5.55 x 2.83 x 5.48 |
| Voltage (Volts) | 115 VAC |
| Output Voltage (Volts) | 240 VAC |
| Phases In/Out | 1-3 |
| Horsepower | 1/4 |
| Water Resistant/Hosedown | Yes |
